Bigger. Bolder. More refined.
Please reach out if you have any questions about this value-packed SUV or would like to schedule a test drive. Our CLEARWATER sales staff is looking forward to helping you get into your next car!
All New, All You
Model Details
Engine & Performance
The Wire Free Small SUV
This Small SUV is ready for Big Things
Trim Levels
Activ
Muscular and monochromatic, ACTIV will help you announce your presence wherever your hustle takes you. Includes all LT content plus:
- 18-inch black aluminum wheels
- Black grille with Titanium-color chrome accents
- Unique interior accents
- ACTIV badging
2RS
2RS gives you everything you love about 1RS, plus a host of additional comfort and convenience features. Includes all LT content plus:
- 19-inch machined two-tone wheels
- RS badging with unique grille
- Black bowtie emblems
- Red interior accents
LT
Simple and clean design gives way to plenty of SUV capability and creature comforts. Includes all LS content plus:
- 17-inch machined two-tone wheel

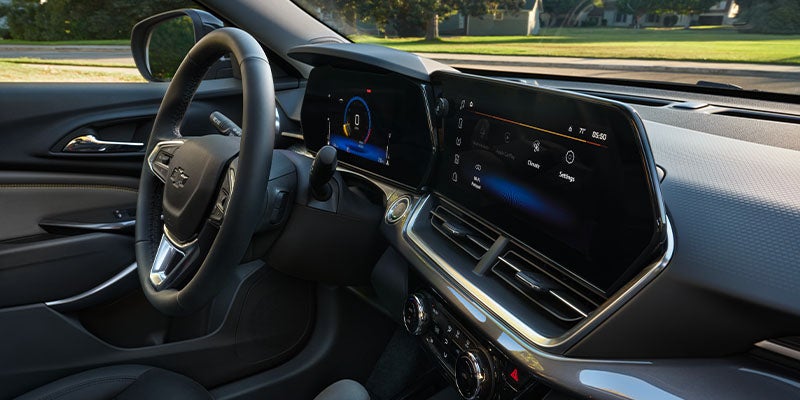

- 11-inch diagonal color touch-screen and 8-inch diagonal color Driver Information Center
- Remote start
- Automatic climate controls
1LT
With its sporty design and unique grille and badging, you’ll set yourself apart behind the wheel of 1RS. Includes all LS content plus:
- 18-inch machined two-tone wheels
- RS badging with unique grille
- Black bowtie emblems
- Red interior accents
LS
This no-compromises SUV gives you everything you need, and nothing you don’t.
- Chevy Safety Assist
- Wireless Apple CarPlay® and wireless Android Auto™ compatibility
- 17-inch steel wheels
- Active Noise Cancellation
Specifications
2024 Chevrolet Trax Specs (click to expand)
EPA-Certified MPG
City - 28 |
ENGINE
|
ECOTEC 1.2L Turbo I-3 |
Bore & Stroke (in / mm): |
2.95 x 3.54 / 75 x 90 |
Block Material: |
Aluminum, High Pressure Die Cast |
Cylinder Head Material: |
Aluminum, Die Cast |
Valvetrain: |
DOHC |
Fuel Delivery: |
Direct injection |
Horsepower (hp / kW @ rpm): |
137 / 102 @ 5000 |
Torque (lb-ft/ Nm @ rpm): |
162 / 219 @ 2500 |
TRANSMISSION & AXLE
Type: |
Hydra-Matic 6T40 six-speed automatic |
Gear Ratios (:1) |
|
First |
4.58 |
Second |
2.96 |
Third |
1.91 |
Fourth |
1.44 |
Fifth |
1.00 |
Sixth |
0.74 |
Reverse |
2.94 |
Final Drive Ratio: |
3.53 |
CHASSIS & SUSPENSION
Front Suspension: |
MacPherson Strut with coil-over spring; direct-acting stabilizer bar |
Rear Suspension: |
Compound Crank (torsion beam); coil springs with twin-tube shock absorbers |
Steering Type: |
Column-mounted electric power-assisted rack-and-pinion |
Brake Type: |
Four-wheel disc |
Wheel Size: |
17-inch steel (LS) 17-inch aluminum (LT) 18-inch aluminum (1RS and ACTIV) 19-inch aluminum (2RS) |
EXTERIOR DIMENSIONS
Wheelbase (in. / mm): |
106.3 / 2700 |
Overall Length (in. / mm): |
178.6 / 4537 |
Overall Width (in. / mm): |
71.7 / 1823 (without mirrors) |
Overall Height (in. / mm): |
61.4 / 1560 |
Track (in. mm): |
61.4 / 1561 (front) |
Ground Clearance (in. / mm): |
7.3 / 186 |
INTERIOR DIMENSIONS & CARGO VOLUME
Headroom (in / mm): |
39.6 / 1006 (front) |
Legroom (in. / mm): |
41.9 / 1065 (front) |
Shoulder Room (in. / mm): |
55.7 / 1415 (front) |
Hip Room (in. / mm): |
52.1 / 1324 (front) |
WEIGHTS & CAPACITIES
EPA Passenger Volume (cu. ft. / L): |
99.8 / 2826 |
Cargo Volume1 (cu. ft. / L): |
25.6 / 725 (behind rear seat) |
1Cargo and load capacity limited by weight and distribution.
SAFETY & DRIVER ASSISTANCE FEATURES
Six standard airbags1: frontal and knee for driver and front passenger; seat-mounted side-impact and roof-rail mounted head-curtain for front and rear outboard seating positions |
Standard Tire Pressure Monitor System; tire pressure monitor includes tire fill alert (excludes spare tire, if equipped) |
Standard Rear Vision Camera2 |
Chevy Safety Assist2 is standard. Content includes Automatic Emergency Braking, Front Pedestrian Braking, Lane Keep Assist with Lane Departure Warning, Forward Collision Alert, IntelliBeam auto high-beams and Following Distance Indicator |
Adaptive Cruise Control2, Side Blind Zone Alert with Lane Change Alert2, Rear Cross Traffic Alert2 and Rear Park Assist2 are available |
1Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See your vehicle Owner’s Manual for more information.
2Safety or driver-assistance features are no substitute for the driver’s responsibility to operate the vehicle in a safe manner. The driver should remain attentive to traffic, surroundings and road conditions at all times. Visibility, weather and road conditions may affect feature performance. Read the vehicle Owner’s Manual for more important feature limitations and information.
